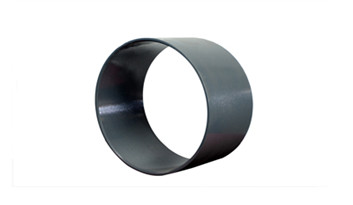

press on rim
With more than ten years experience in wheel design, and more than ten professional design and development engineers; press on rims in better surface treatment and with professional welding and descaling equipment. Rigorous welding and weld grinding process to ensure welding quality and good coating effect.
Here are the main specifications of press on wheel rim for reference
Size(inch) |
Thickness (±0.5)mm |
Width (0/-0.5)mm |
Inside Dia mm |
Min-Dia mm |
Max-Dia mm |
4×4 |
6/8 |
101.6 |
101.22 |
101.016 |
101.422 |
4.5×4.5 |
6/8 |
114.3 |
|||
4×5 |
6/8 |
101.6 |
126.49 |
126.289 |
126.695 |
5×5 |
6/8 |
127 |
126.49 |
126.289 |
126.695 |
2.5×6 |
8 |
63.5 |
151.89 |
151.689 |
152.095 |
3.5×6 |
8 |
88.9 |
151.89 |
151.689 |
152.095 |
3×6 1/4 |
8 |
76.2 |
158.24 |
158.039 |
158.445 |
4×6 1/4 |
8 |
1.610 |
158.24 |
158.039 |
158.445 |
5×6 1/4 |
8 |
127 |
158.24 |
158.039 |
158.445 |
6×6 1/4 |
8 |
152.4 |
158.24 |
158.039 |
158.445 |
7×6 1/4 |
8 |
177.8 |
158.24 |
158.039 |
158.445 |
3×6 1/2 |
8 |
76.2 |
164.59 |
164.389 |
164.795 |
4×6 1/2 |
8 |
101.6 |
164.59 |
164.389 |
164.795 |
4 3/4/×6 1/2 |
8 |
120.65 |
164.59 |
164.389 |
164.795 |
5××6 1/2 |
8 |
127 |
164.59 |
164.389 |
164.795 |
2.5×8 |
8 |
63.5 |
202.69 |
202.489 |
202.895 |
3×8 |
8 |
76.2 |
202.69 |
202.489 |
202.895 |
3.5×8 |
8 |
88.9 |
202.69 |
202.489 |
202.895 |
4×8 |
8 |
101.6 |
202.69 |
202.489 |
202.895 |
4.5×8 |
8 |
114.3 |
202.69 |
202.489 |
202.895 |
5×8 |
8 |
127 |
202.69 |
202.489 |
202.895 |
5.5×8 |
8 |
139.7 |
202.69 |
202.489 |
202.895 |
6.5×8 |
8 |
165.1 |
202.69 |
202.489 |
202.895 |
5×10 |
8 |
127 |
253.37 |
253.162 |
253.568 |
5.5×10 |
8 |
139.7 |
253.37 |
253.162 |
253.568 |
6×10 |
8 |
152.4 |
253.37 |
253.162 |
253.568 |
5×10 1/2 |
8 |
127 |
266.07 |
265.862 |
266.268 |
6×10 1/2 |
8 |
152.4 |
266.07 |
265.862 |
266.268 |
7×10 1/2 |
8 |
177.8 |
266.07 |
265.862 |
266.268 |
3×11 1/4 |
8/10 |
76.2 |
285.12 |
284.912 |
285.318 |
3.5×11 1/4 |
8/10 |
88.9 |
285.12 |
284.912 |
285.318 |
4×11 1/4 |
8/10 |
101.6 |
285.12 |
284.912 |
285.318 |
5×11 1/4 |
8/10 |
127 |
285.12 |
284.912 |
285.318 |
6×11 1/4 |
8/10 |
152.4 |
285.12 |
284.912 |
285.318 |
7×11 1/4 |
8/10 |
177.8 |
285.12 |
284.912 |
285.318 |
8×11 1/4 |
8/10 |
203.2 |
285.12 |
284.912 |
285.318 |
9×11 1/4 |
8/10 |
228.6 |
285.12 |
284.912 |
285.318 |
3.5×12 1/8 |
8/10 |
88.9 |
307.34 |
307.137 |
307.543 |
5×12 1/8 |
8/10 |
127 |
307.34 |
307.137 |
307.543 |
6×12 1/8 |
8/10 |
152.4 |
307.34 |
307.137 |
307.543 |
Size(inch) |
Thickness (±0.5)mm |
Width (0/-0.5)mm |
Inside Dia mm |
Min-Dia mm |
Max-Dia mm |
|||||
7×12 1/8 |
8/10 |
177.8 |
307.34 |
307.137 |
307.543 |
|||||
8×12 1/8 |
8/10 |
203.2 |
307.34 |
307.137 |
307.543 |
|||||
9×12 1/8 |
8/10 |
228.6 |
307.34 |
307.137 |
307.543 |
|||||
5×14 |
10/12 |
127 |
354.97 |
354.762 |
355.168 |
|||||
6×14 |
10/12 |
152.4 |
354.97 |
354.762 |
355.168 |
|||||
7×14 |
10/12 |
177.8 |
354.97 |
354.762 |
355.168 |
|||||
9×14 |
10/12 |
228.6 |
354.97 |
354.762 |
355.168 |
|||||
12×14 |
10/12 |
304.8 |
354.97 |
354.762 |
355.168 |
|||||
5×15 |
10/12 |
127 |
380.14 |
379.933 |
380.340 |
|||||
6×15 |
10/12 |
152.4 |
380.14 |
379.933 |
380.340 |
|||||
7×15 |
10/12 |
177.8 |
380.14 |
379.933 |
380.340 |
|||||
8×15 |
10/12 |
203.2 |
380.14 |
379.933 |
380.340 |
|||||
9×15 |
10/12 |
228.6 |
380.14 |
379.933 |
380.340 |
|||||
12×15 |
10/12 |
304.8 |
380.14 |
379.933 |
380.340 |
|||||
5×16 |
10/12 |
127 |
405.54 |
405.333 |
405.740 |
|||||
6×16 |
10/12 |
152.4 |
405.54 |
405.333 |
405.740 |
|||||
7×16 |
10/12 |
177.8 |
405.54 |
405.333 |
405.740 |
|||||
8×16 |
10/12 |
203.2 |
405.54 |
405.333 |
405.740 |
|||||
9×16 |
10/12 |
228.6 |
405.54 |
405.333 |
405.740 |
|||||
10×16 |
10/12 |
254 |
405.54 |
405.333 |
405.740 |
|||||
12×16 |
10/12 |
304.8 |
405.54 |
405.333 |
405.740 |
|||||
14×16 |
10/12 |
355.6 |
405.54 |
405.333 |
405.740 |
|||||
16×16 |
10/12 |
406.4 |
405.54 |
405.333 |
405.740 |
|||||
6×17 3/4 |
10/12 |
152.4 |
449.99 |
449.783 |
450.190 |
|||||
7×17 3/4 |
10/12 |
177.8 |
449.99 |
449.783 |
450.190 |
|||||
8×17 3/4 |
10/12 |
203.2 |
449.99 |
449.783 |
450.190 |
|||||
9×17 3/4 |
10/12 |
228.6 |
449.99 |
449.783 |
450.190 |
|||||
10×17 3/4 |
10/12 |
254 |
449.99 |
449.783 |
450.190 |
|||||
12×17 3/4 |
10/12 |
304.8 |
449.99 |
449.783 |
450.190 |
|||||
14×17 3/4 |
10/12 |
355.6 |
449.99 |
449.783 |
450.190 |
|||||
5×20 |
10/12 |
127 |
506.88 |
506.679 |
507.086 |
|||||
10×22 |
10/12 |
254 |
557.68 |
557.479 |
557.886 |
|||||
12×22 |
10/12 |
304.8 |
557.68 |
557.479 |
557.886 |
|||||
14×22 |
10/12 |
355.6 |
557.68 |
557.479 |
557.886 |
|||||
15×22 |
10/12 |
381 |
557.68 |
557.479 |
557.886 |
|||||
16×22 |
10/12 |
406.4 |
557.68 |
557.479 |
557.886 |
|||||
10×30 |
10/12 |
254 |
760.35 |
760.146 |
760.552 |
|||||
12×30 |
10/12 |
304.8 |
760.35 |
760.146 |
760.552 |
|||||
14×30 |
10/12 |
355.6 |
760.35 |
760.146 |
760.552 |
|||||
16×30 |
10/12 |
406.4 |
760.35 |
760.146 |
760.552 |
